Membrane Filter Press

Product Information

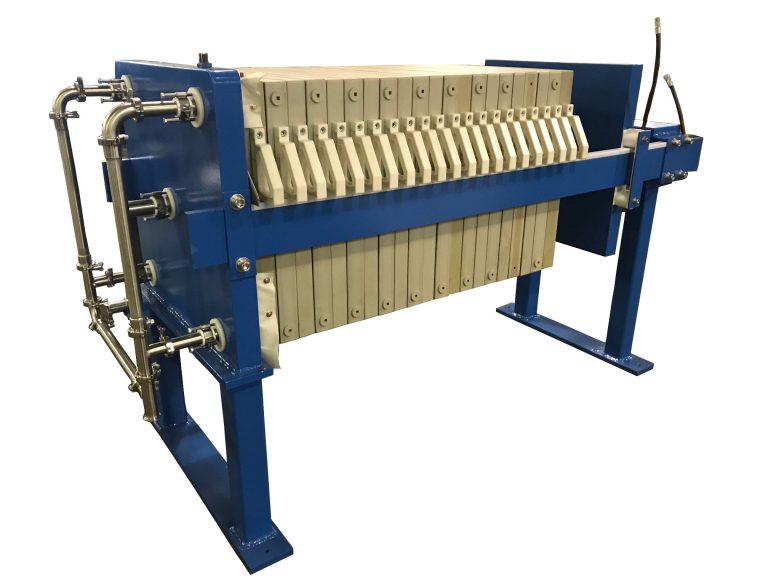

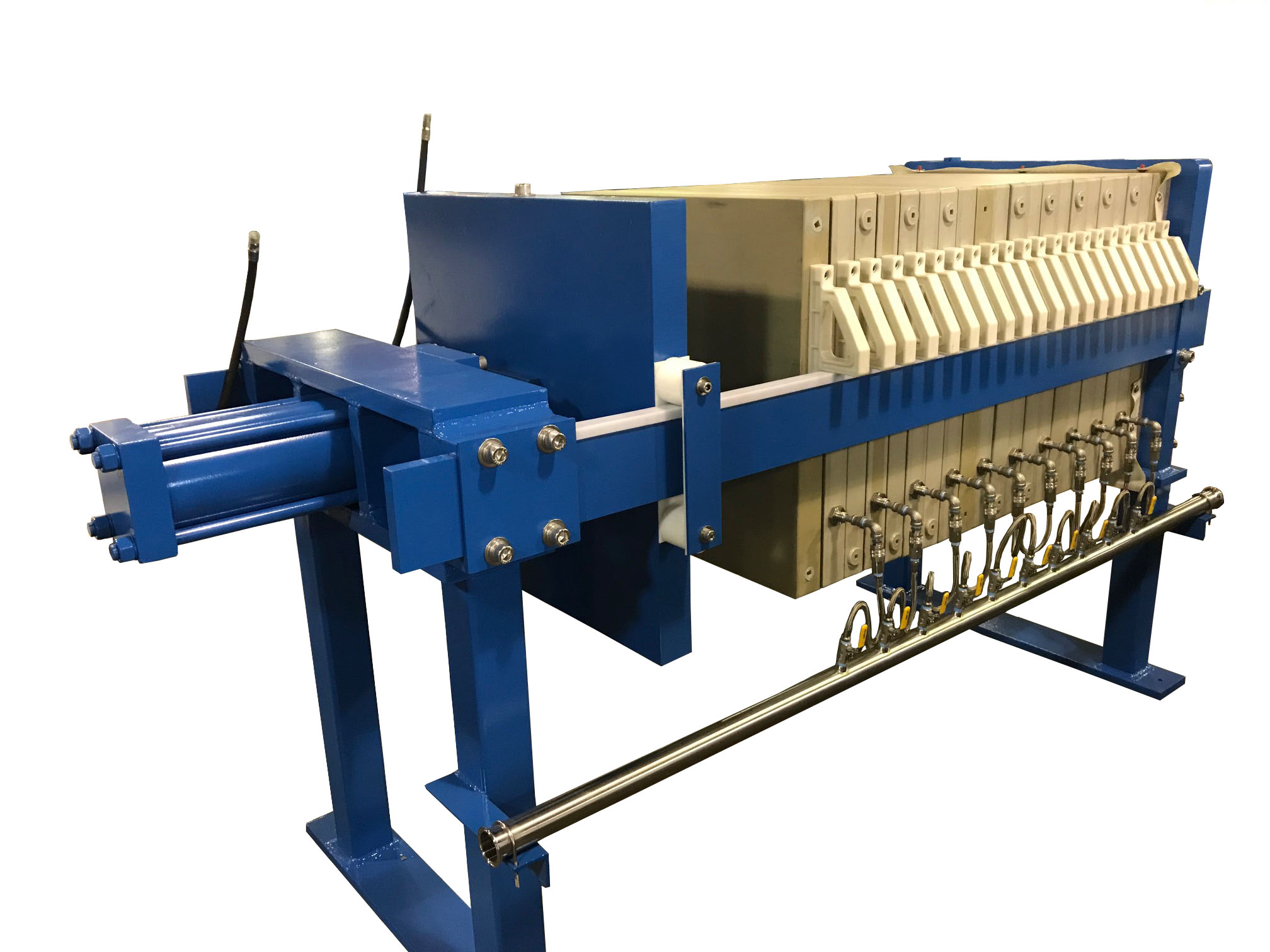

New Membrane Filter Press

Built to Your Specifications

Product Description

  • Can Reduce Cycle Time by Approximately 50% on Average, Depending Upon the Application.
  • Ideal for Porous or Fibrous Cakes to Help Squeeze Out Extra Liquid
  • Can be Built to Food Grade Specifications
  • Automatic or Manual Hydraulic
  • One Year Warranty
PLATE SIZEPRESS SIZE
470MM1-5 CU. FT.
630MM2-10 CU. FT.
800MM5-30 CU. FT.
1000MM15-50 CU. FT.
1200MM40-150 CU. FT.
1500MM100-300 CU. FT.

Additional information

Condition

Warranty

Filter Press Options

Our Process​

Order and Customize

Sales Person

Speak to one of our sales representatives for options and customization.

Construction

Gear Wrench

Your equipment is built and customized just for you.  Receive photos and updates during the construction.

Delivery and Installation

Flatbed Truck

Ask about our delivery and installation options.

Do you have more questions?

Do you need a filter press immediately?

Phases of Membrane Filter Press Cycle

1 - Filling Stage

Membrane Chamber 1 - Filling Stage

Filling Stage: The Mash enters the chambers through a feed pump.

2 - Filtration Stage

Mash Filter - Filtration Stage

Filtration Stage: Once the chambers are full, the Mash that is being pushed by the feed pump will force the Wort out from the chambers. The Filter Plates and Filter Cloths will capture the Mash Grains.

3 - Compression Stage

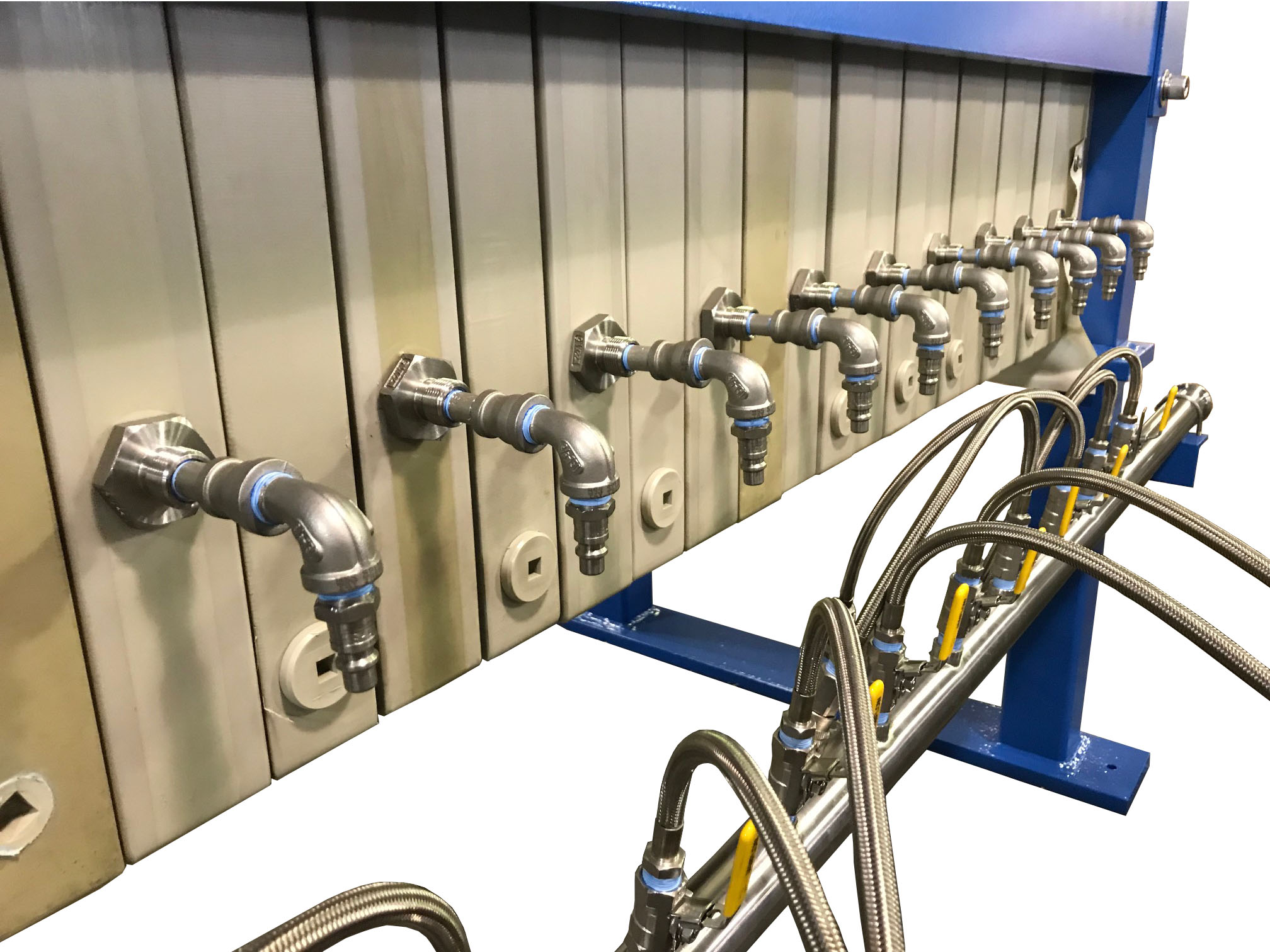

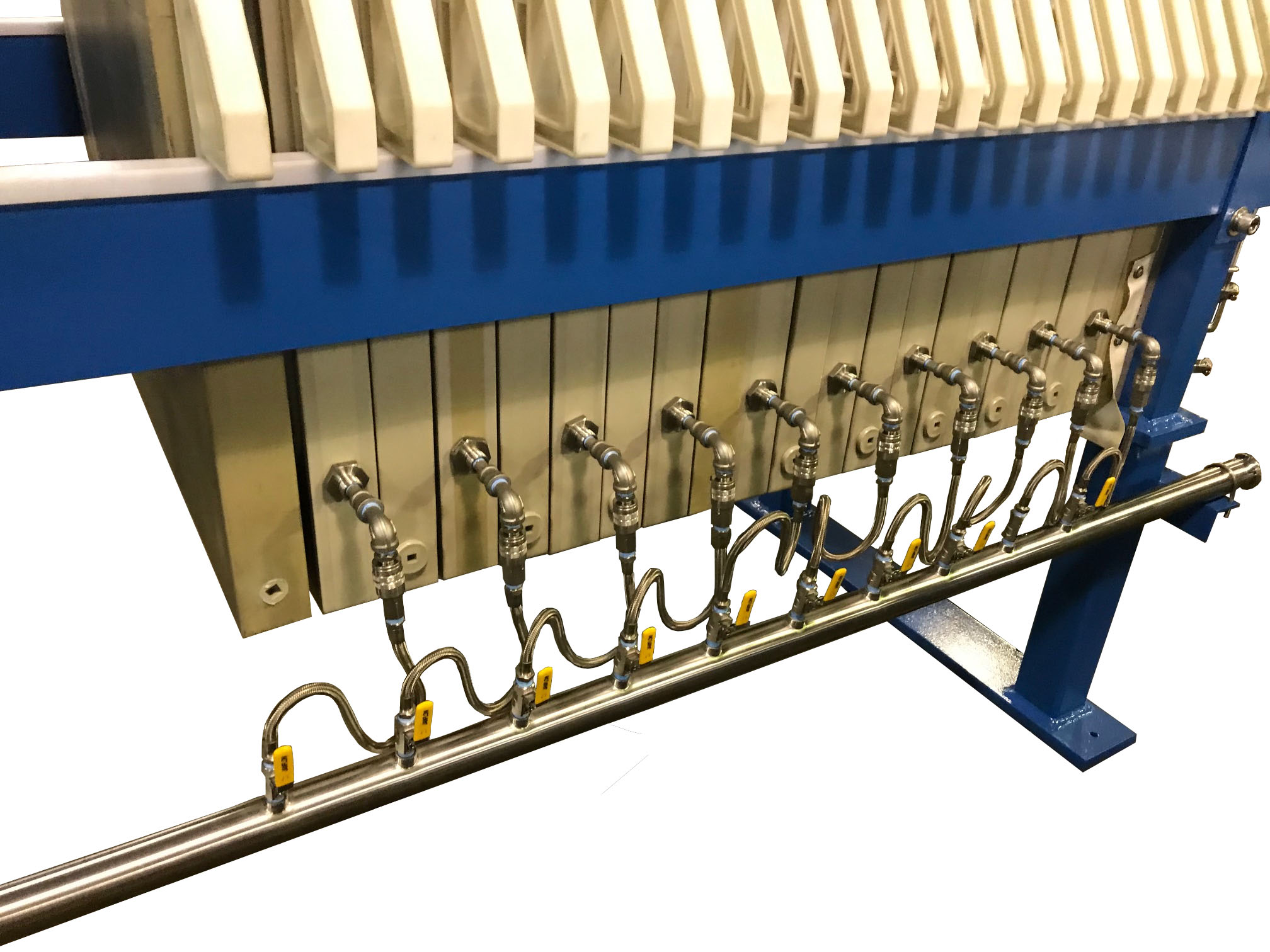

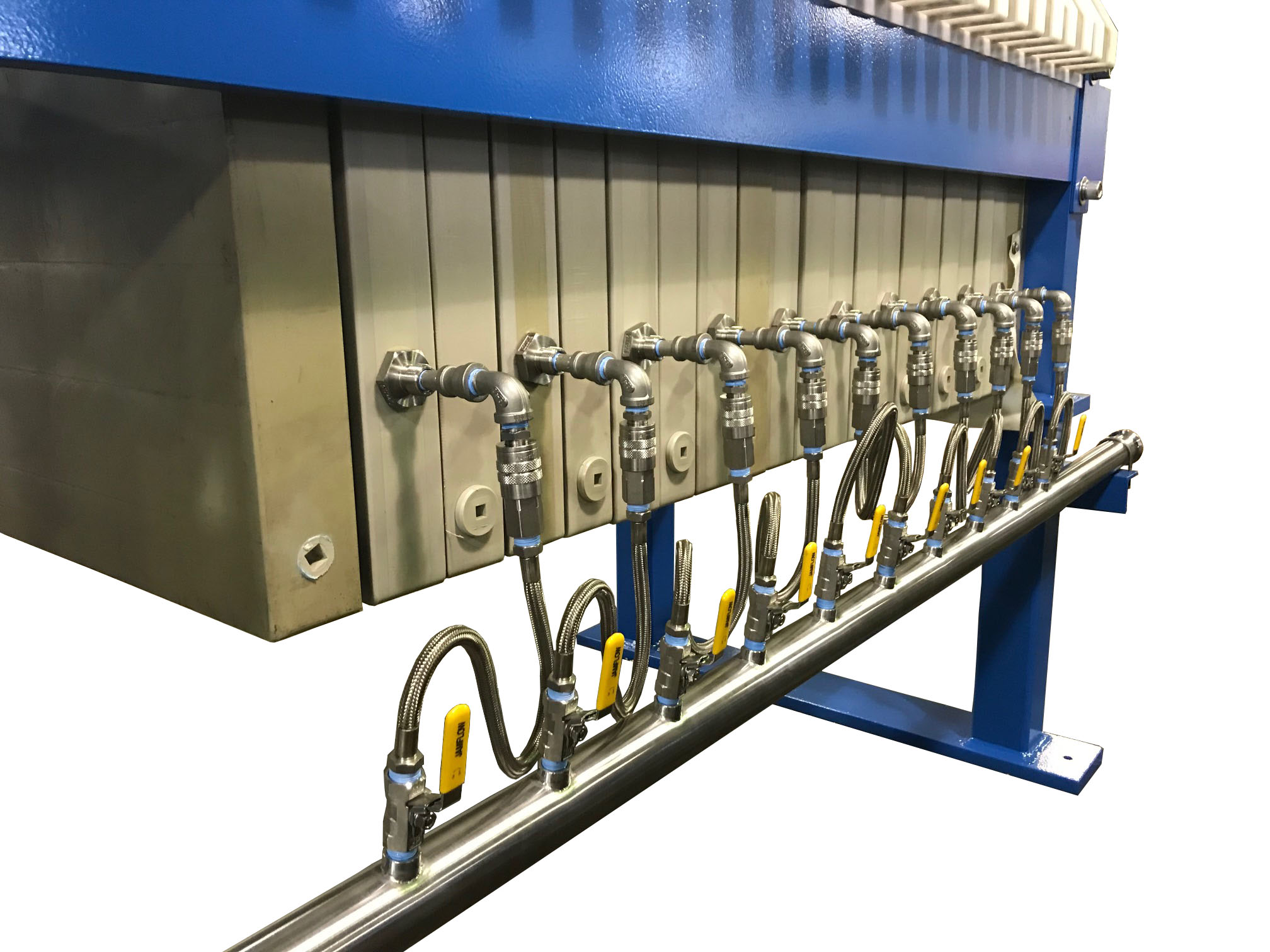

Compression Stage: Once the feed pressure has cycled out, the system will be closed and the membrane squeeze will begin. Water or Air is pumped behind the membrane bladders. This compress the mash grains inside the chambers and forces out more Wort.

4 - Draining Stage

Mash Filter - Draining Stage

Draining Stage: Once the compression stage is complete. The Water or Air will drain from the Mash Filter.

5 - Discharge Stage

Membrane Chamber 5 - Cake Discharge

Grain / Cake  Discharge Stage: Each chamber is opened up for cleaning and the grain is discharged.
