20 GPH Mini-Heated Tank Evaporative System™ – 1639A

Product Information

$24,900

As-Is

add $20,600

With Reconditioning

Product Description

SKU 1639-A Category

20 GPH Mini-Heated Tank Evaporative System™

Identical Unit Available: 20 GPH Mini-Heated Tank Evaporative System 1640-A



ET-III-W-1-poly-MINI-54KWH-20-C

Includes:

  • ET-III-W EVAPORATIVE TANK™
    • AirScrubber III installed with a washing spray bar.
    • Aggressive Solutions Package (ASP): Titanium
      fasteners, Teflon nozzles, Viton seals, etc.
  • Companion Condenser to recover the evaporated water back as distilled condensate for reuse.

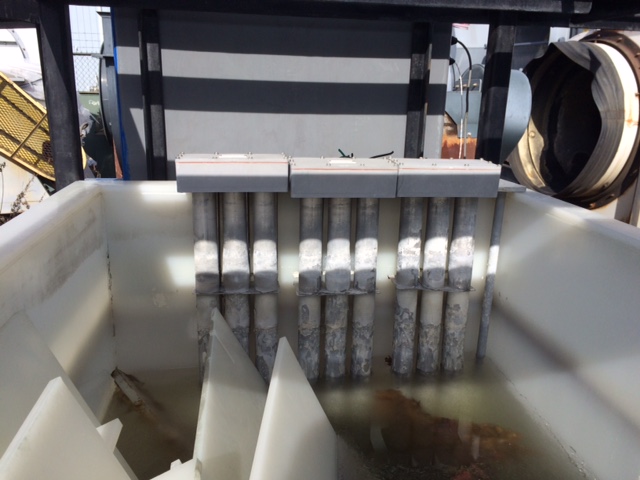

  • Polypropylene heated tank with three (3) each 18 KWH electric heaters.
  • Polypropylene condensate holding tank.
  • Feed pump to feed the ET-III-W evaporator.
  • All equipment will be mounted directly on the tank.

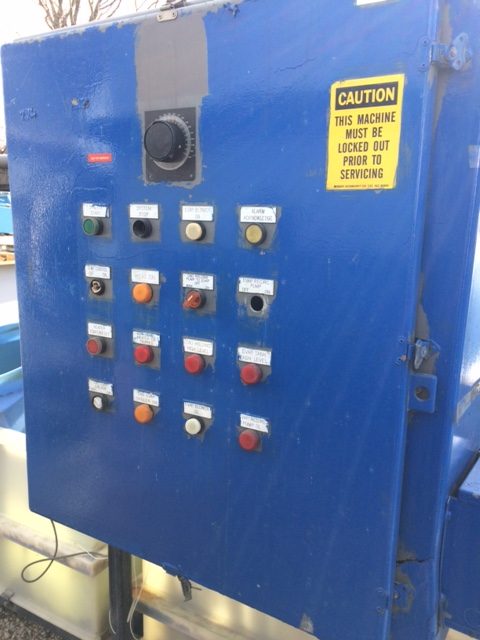

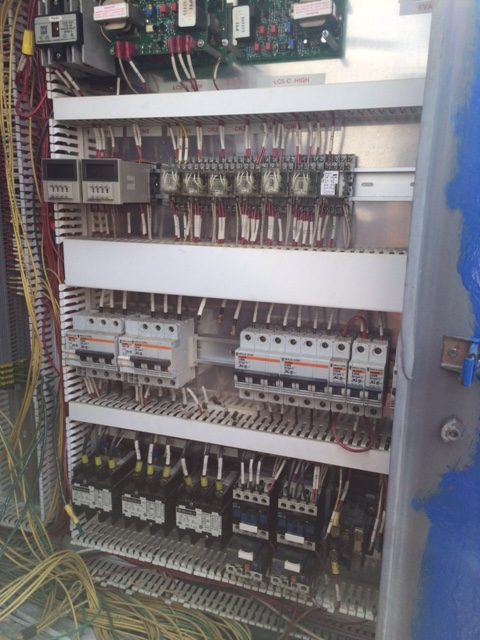

  • Control Panel, to control Pump and Evaporator operation, with level control, temperature control.
  • Approximate Maximum evaporation capability: up to 20 GPH.

(will operate comfortably on applications of ~15 GPH or less)



Outermost dimensions of the assembled system: 7-1/2’L x 6’W x 12’Tall



AS IS: $24,900 each

Fully Reconditioned with 30-day warranty: $45,500 each

Additional information

Dimensions 90 × 72 × 144 in
Condition

GPH

Fuel Type

Reconditioning Option

Warranty
