Filter Aid – Diatomaceous Earth (DE)

Product Information

Filter Aids - Diatomaceous Earth

Product Description

SKU PN-DE-1 Category

Met-Chem offers various kinds of  Filter Aids (Diatomaceous Earth).  Filter aids are used in a wide range of industrial applications. Filter Aid helps to trap the fine solids that otherwise might flow through the filter cloths. It will also help protect the cloth from blinding when filtering oily or slimy sludge.

Order by the Bag or Pallet (33 Bags)

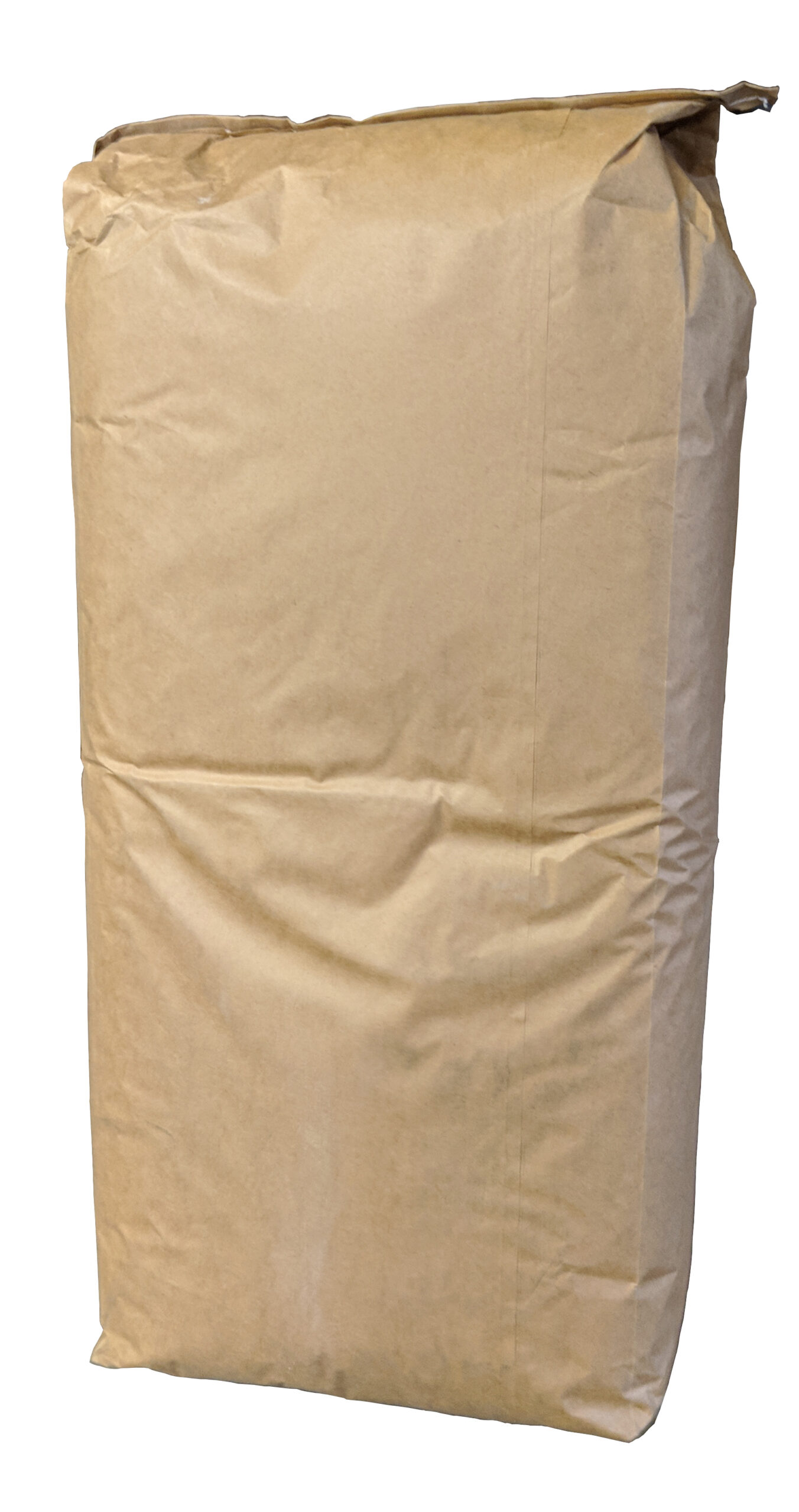

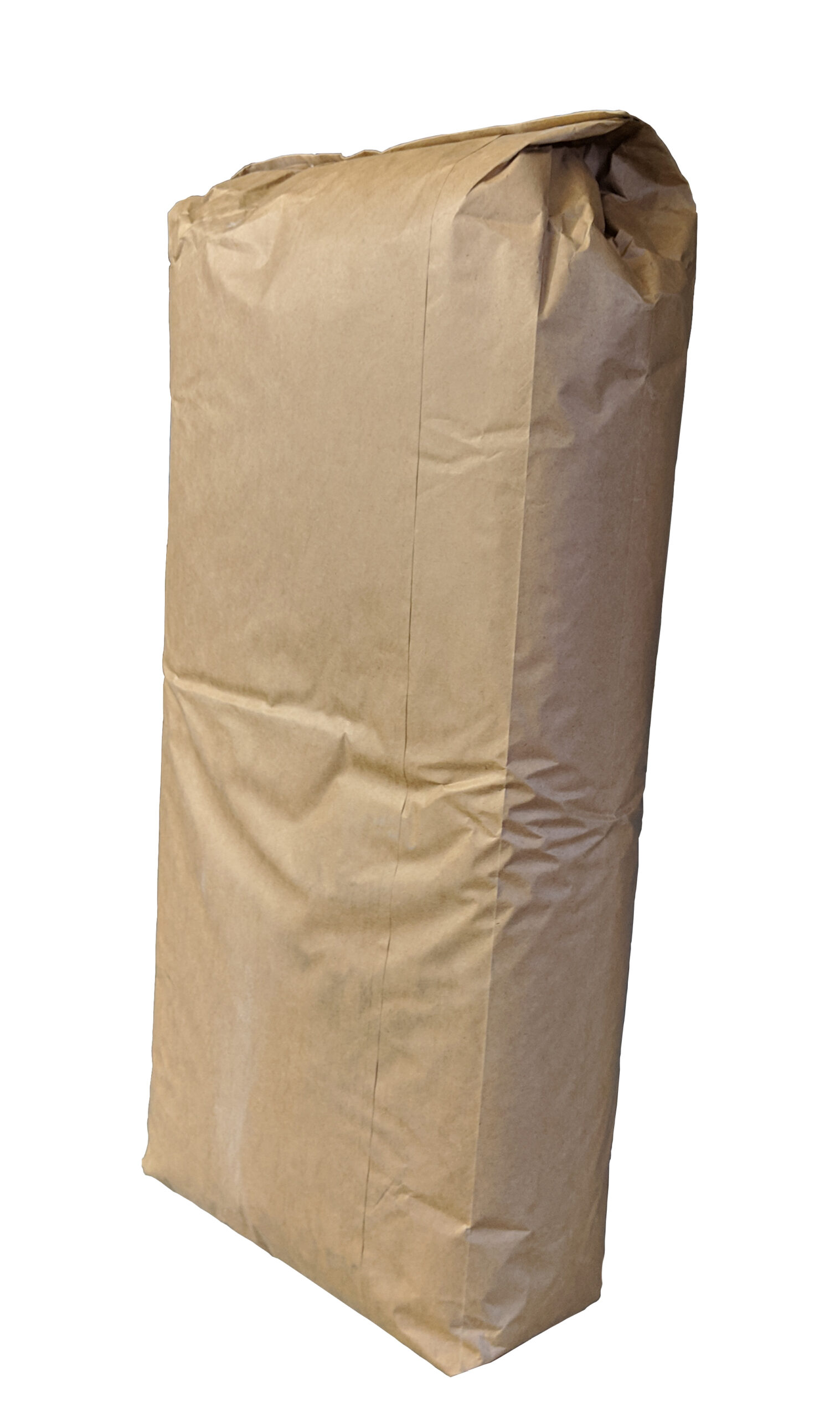

Filter Aid – One Bag

  • 4 Cubic Feet of Filter Aid
  • Approx. 27.5 lbs.
  • 2%-5% Moisture Content

MSDS / SDS – Perlite (All Grades)

CoA – Certificate of Analysis – Perlite

How do I Precoat my Filter Press?

Precoat and bodyfeed are two related applications. Both of these special applications use diatomaceous earth (commonly known as D.E.), cellulose, perlite or fly ash, as a filtering aid when the solids in a slurry are extremely fine and free-filtering. The filter aid helps to trap the fine solids that otherwise might flow through the filter cloths. The processes of precoat and bodyfeed increase the clarity of the filtrate, provide for higher flow rates, more consistent runs, shorter cycles, dryer cakes, better cake release, and also help to protect and increase the life of the filter cloths.

The precoat process is performed before the slurry is pumped into the press. A precoat system consists of a tank, mixer and pump. The filter aid is mixed with water in the precoat tank. It is then pumped into the press where it coats the filter cloths. The filter aid rather than the filter cloths becomes your initial filter media.

During a body feed the filter aid mixes with the slurry in the holding tank prior to being fed into the filter press. The filter aid becomes part of the slurry thereby providing a better filter cake.

Ask for Help

If you are unsure if you need filter aid or which filter aid is best for your industrial application, please contact us.

Additional information

Weight 27.5 lbs
Condition
