40 GPH – Mini-Heated Tank Evaporative System – 1641-A

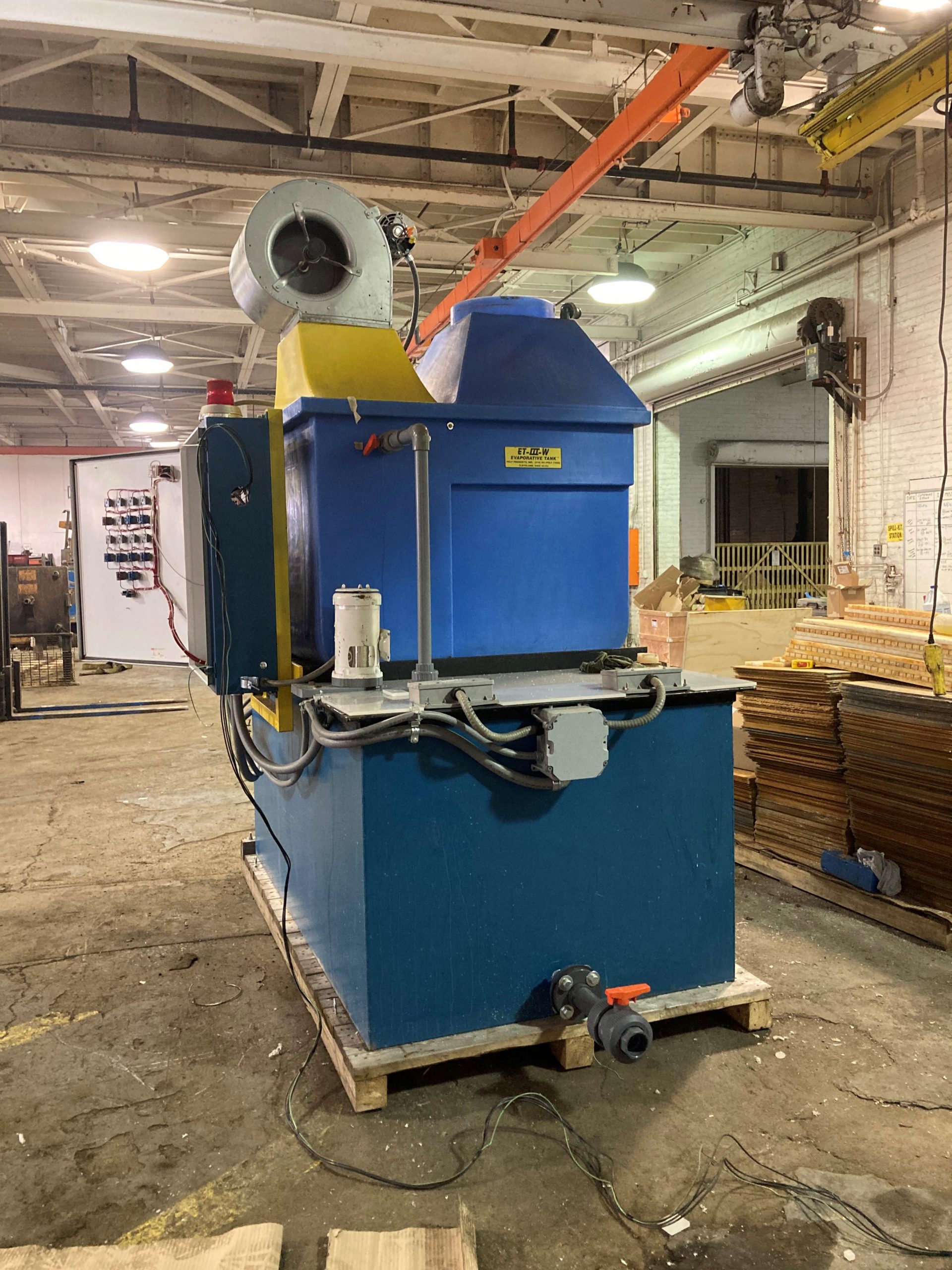

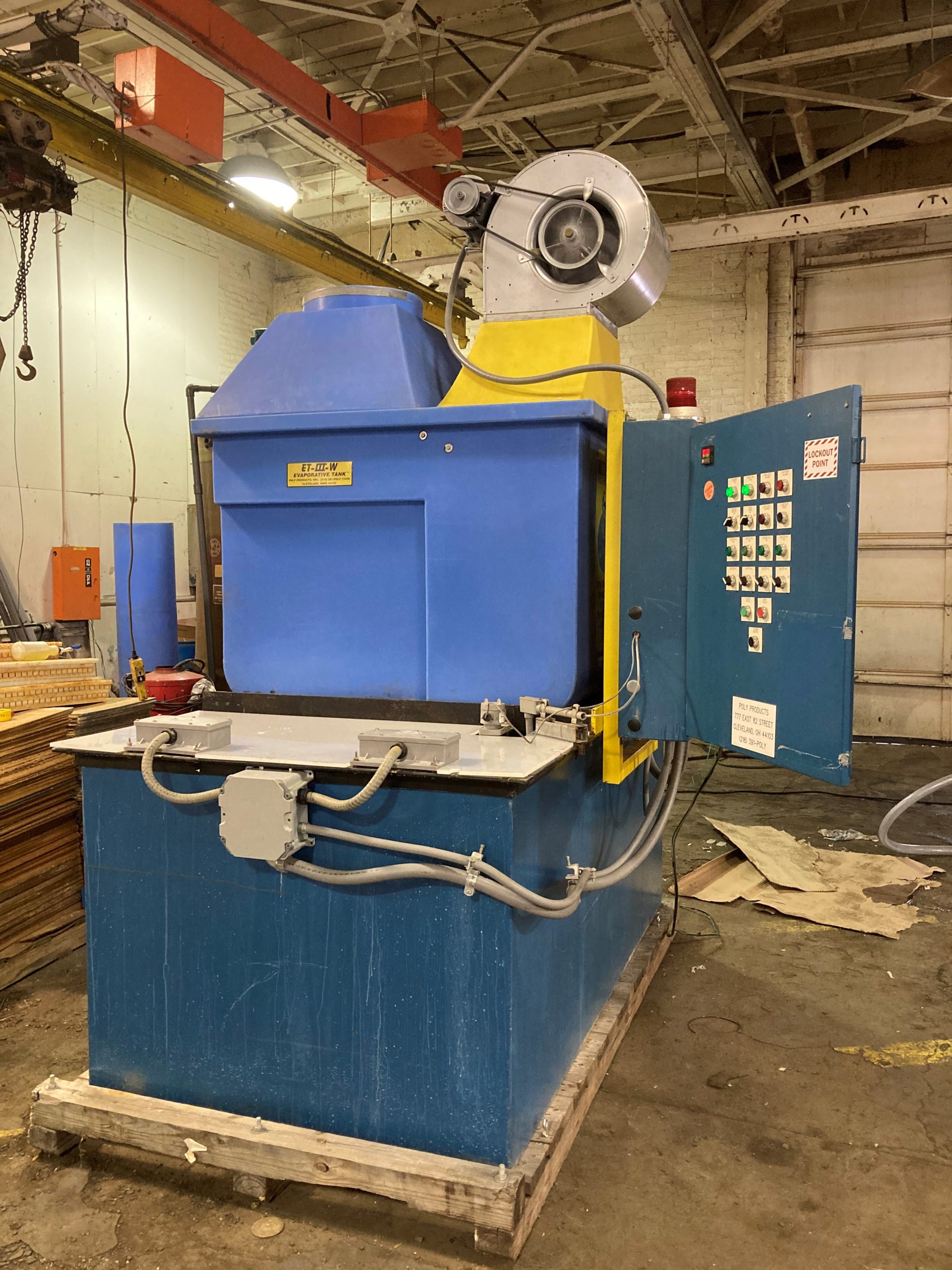

40 GPH MINI-HEATED TANK EVAPORATIVE SYSTEM Built and shipped to a customer in 2003 who received it, but never used it. It has since been used as a pilot unit testing concept for larger applications. Contact us if you have a rental need. ET-III-W-1-CSL-MINI-108KWH-40 Includes:

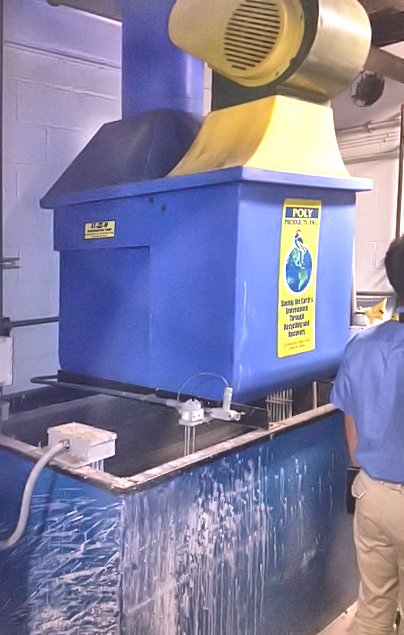

• ET-III-W EVAPORATIVE TANK

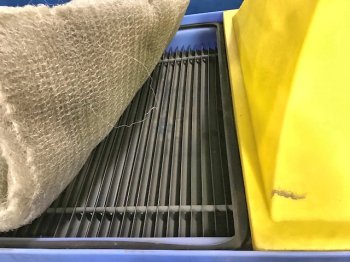

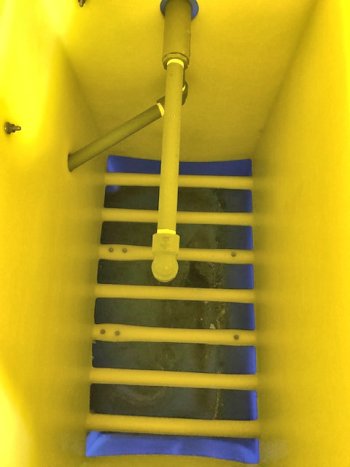

• AirScrubber III installed with washing spray bar.
• Aggressive Solutions Package (ASP): Titanium
• fasteners, Teflon nozzles, Viton seals, etc.

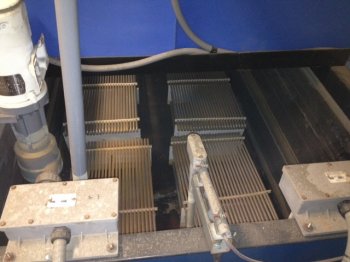

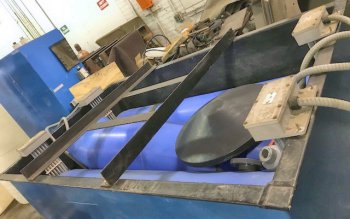

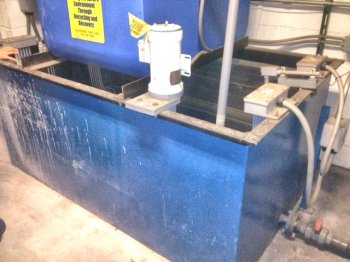

• Koroseal lined carbon tank with three each 36 KWH 304 SS “L” shaped electric heaters

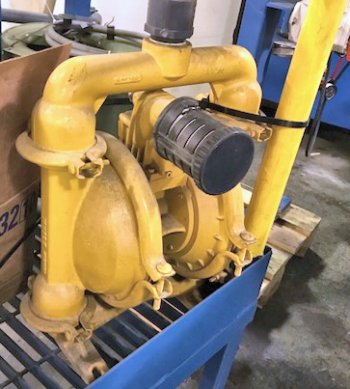

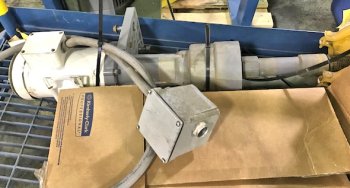

• CPVC Vertical pump and motor.
• All equipment will be mounted directly on the tank.

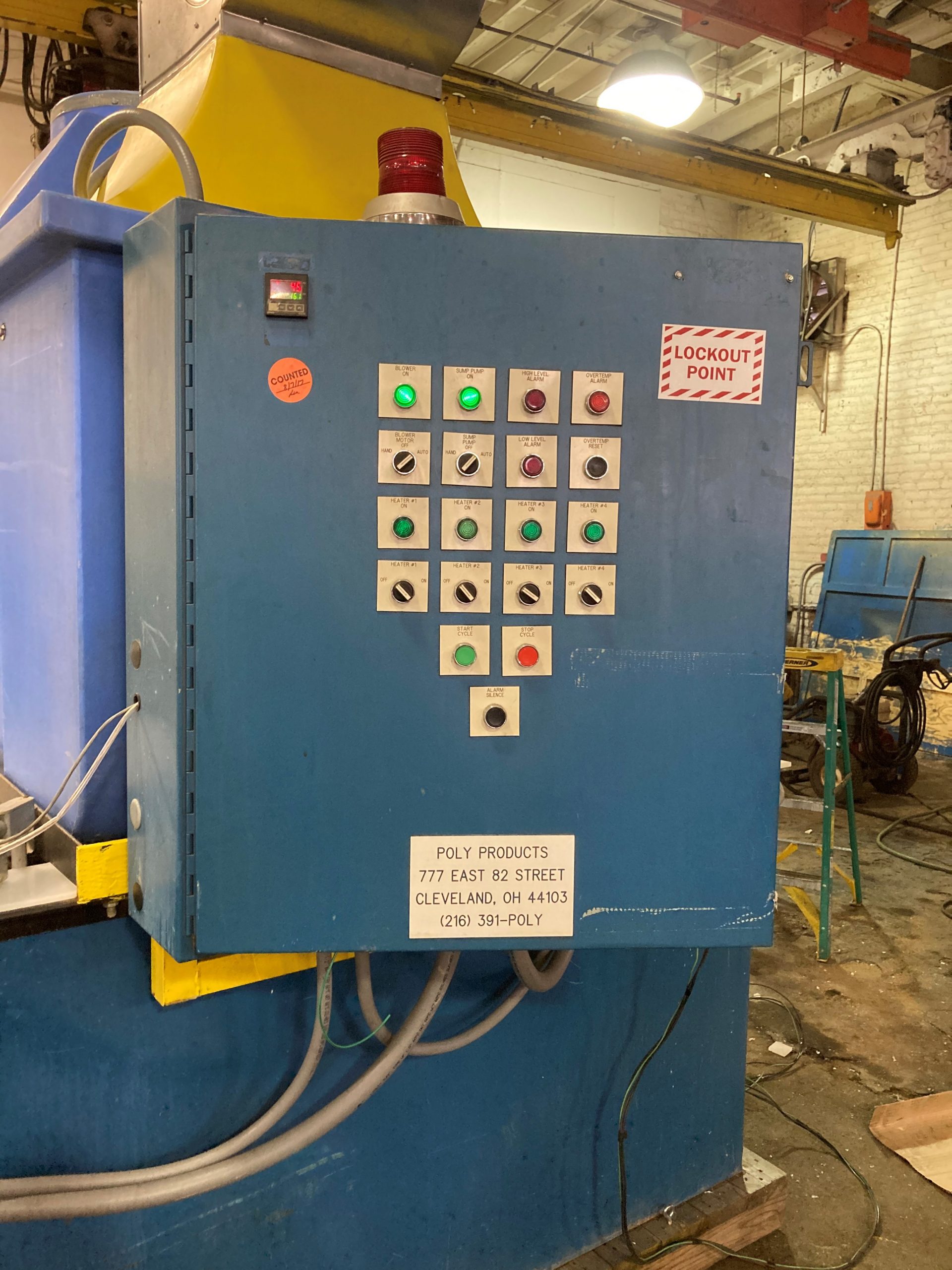

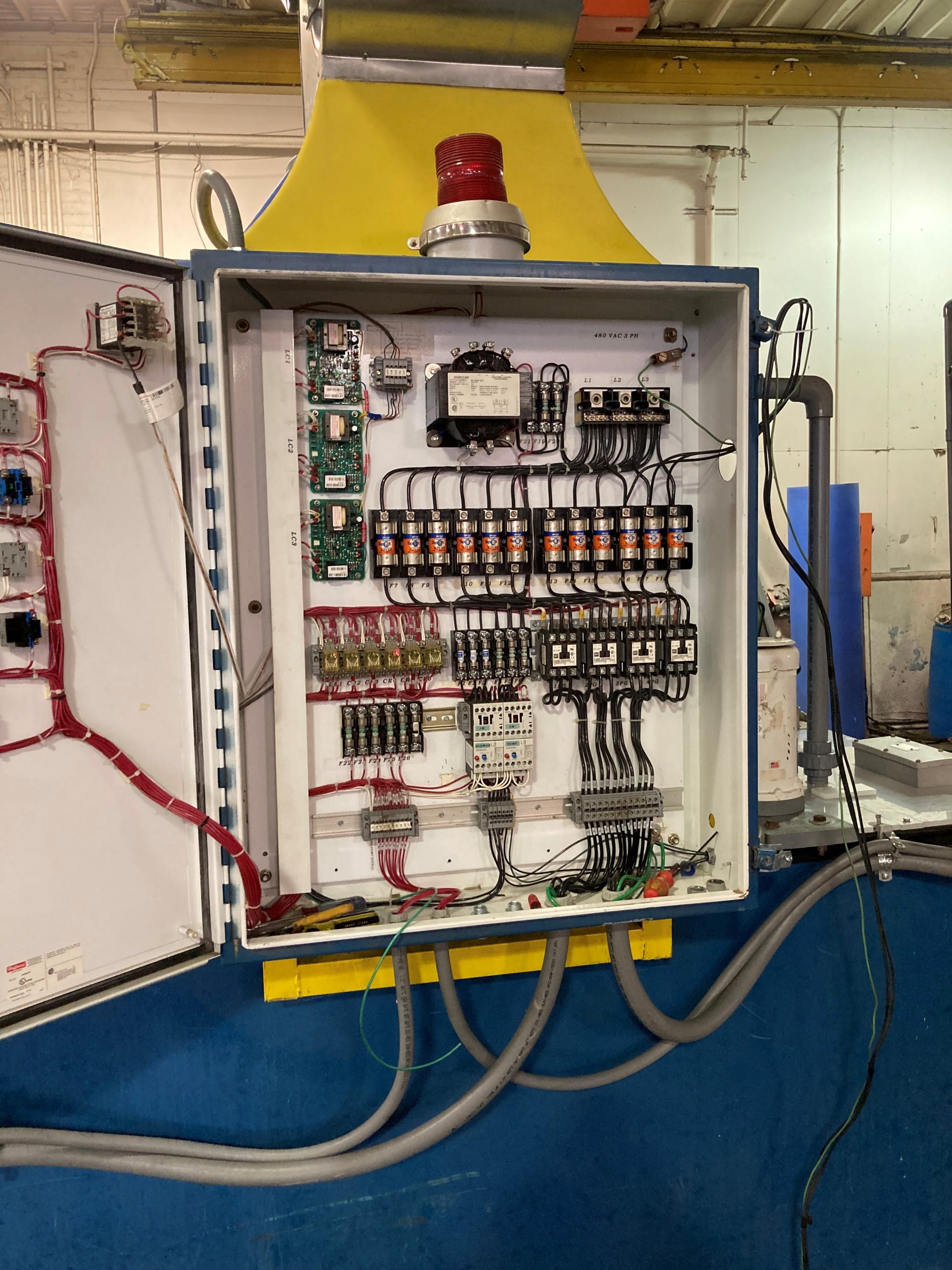

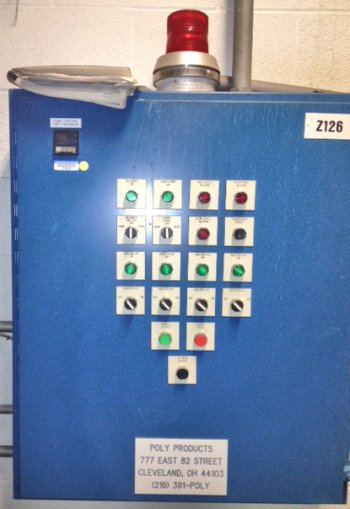

• Control Panel, to control Pump and Evaporator operation, with level control, temperature control, and over temperature protection.

Approximate Maximum evaporation capability: up to 40 GPH.
Outer most dimensions of assembled system: 7-1/2’L x 4-1/2’W x 9’Tall
(Filter press not included)
